CSCI 4511/6511

Joe Goldfrank

Good Afternoon

• Good afternoon

Announcements

• Homework 1 is due on 15 September at 11:55 PM
  • Automatic extensions

Why Are We Here?

• We’re designing rational agents!
  • Perception
  • Logic
  • Action

In Practice

• Environment
  • What happens next
• Perception
  • What agent can see
• Action
  • What agent can do
• Measure/Reward
  • Encoded utility function

Search: Why?

• Fully-observed problem
• Deterministic actions and state
• Well defined start and goal

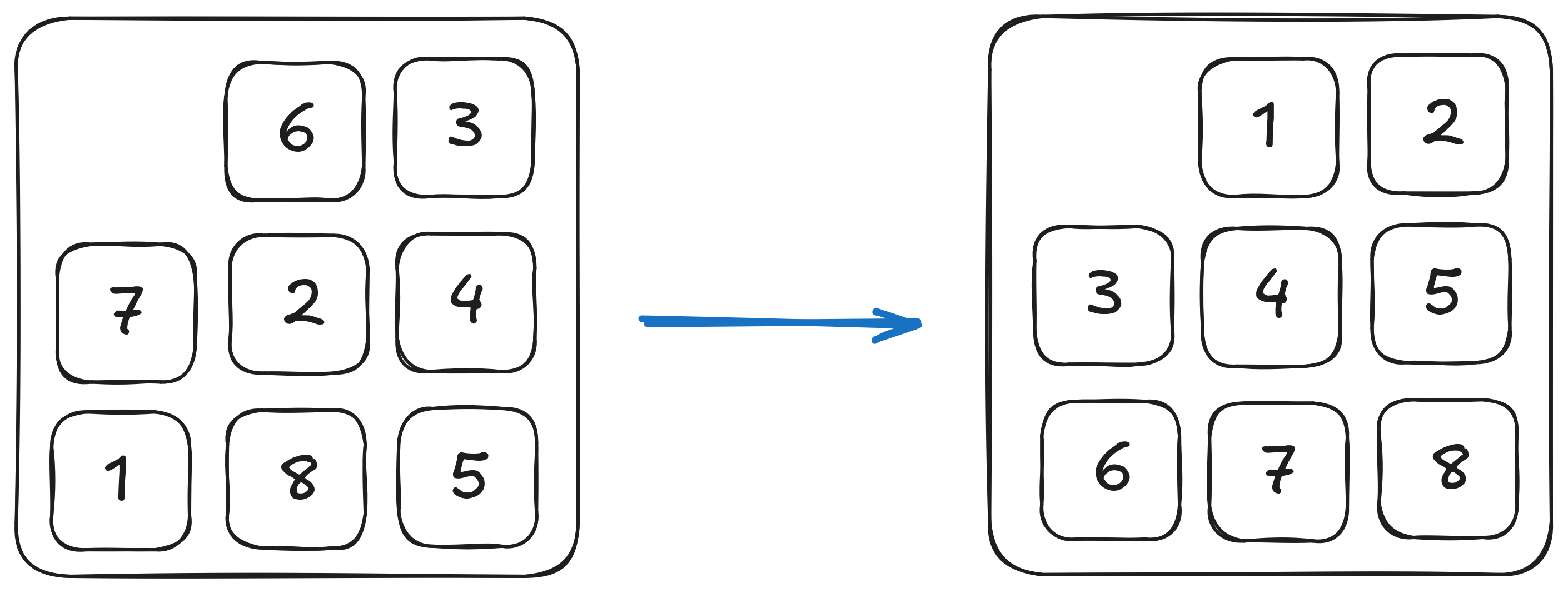

State

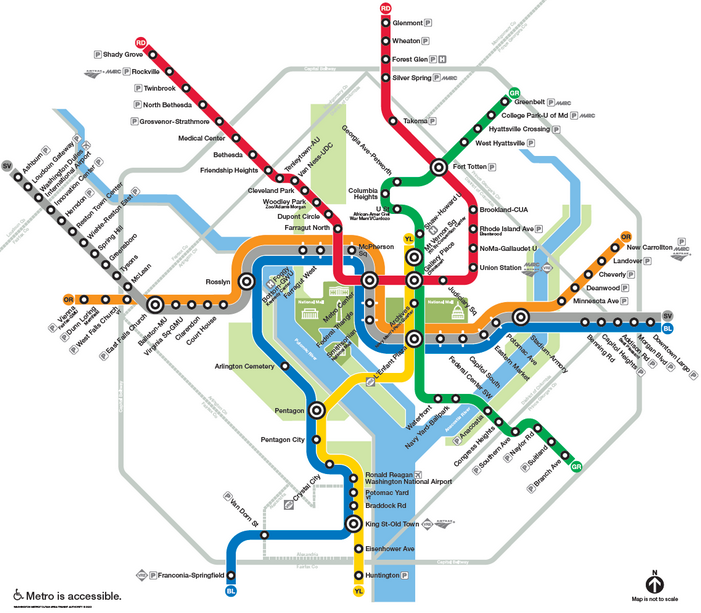

What is the state space?

State

Other Applications

• Route planning
• Protein design
• Robotic navigation
• Scheduling
  • Science
  • Manufacturing

Not Included

• Uncertainty
  • State transitions known
• Adversary
  • Nobody wants us to lose
• Cooperation
• Continuous state

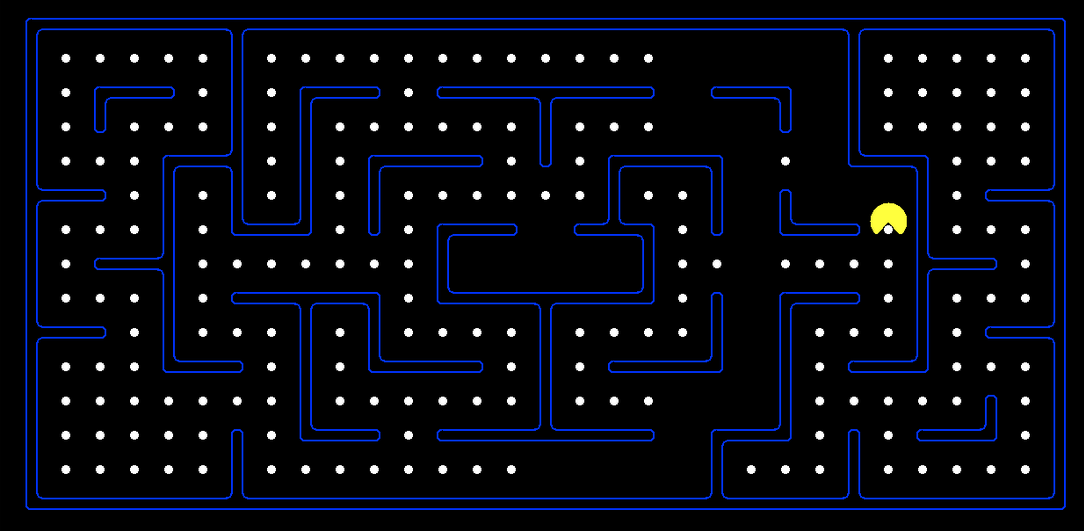

Who Is The Pac-Man?

Search Problem

Search problem includes:

• Start State
• State Space
• State Transitions
• Goal Test

State Space:

Actions & Successor States:

Tour of Croatia

Tour of Croatia

State Space Size?

• Pacman positions, Wall Positions
• Food positions, Food Status?
• Ghost positions, Ghost Status?

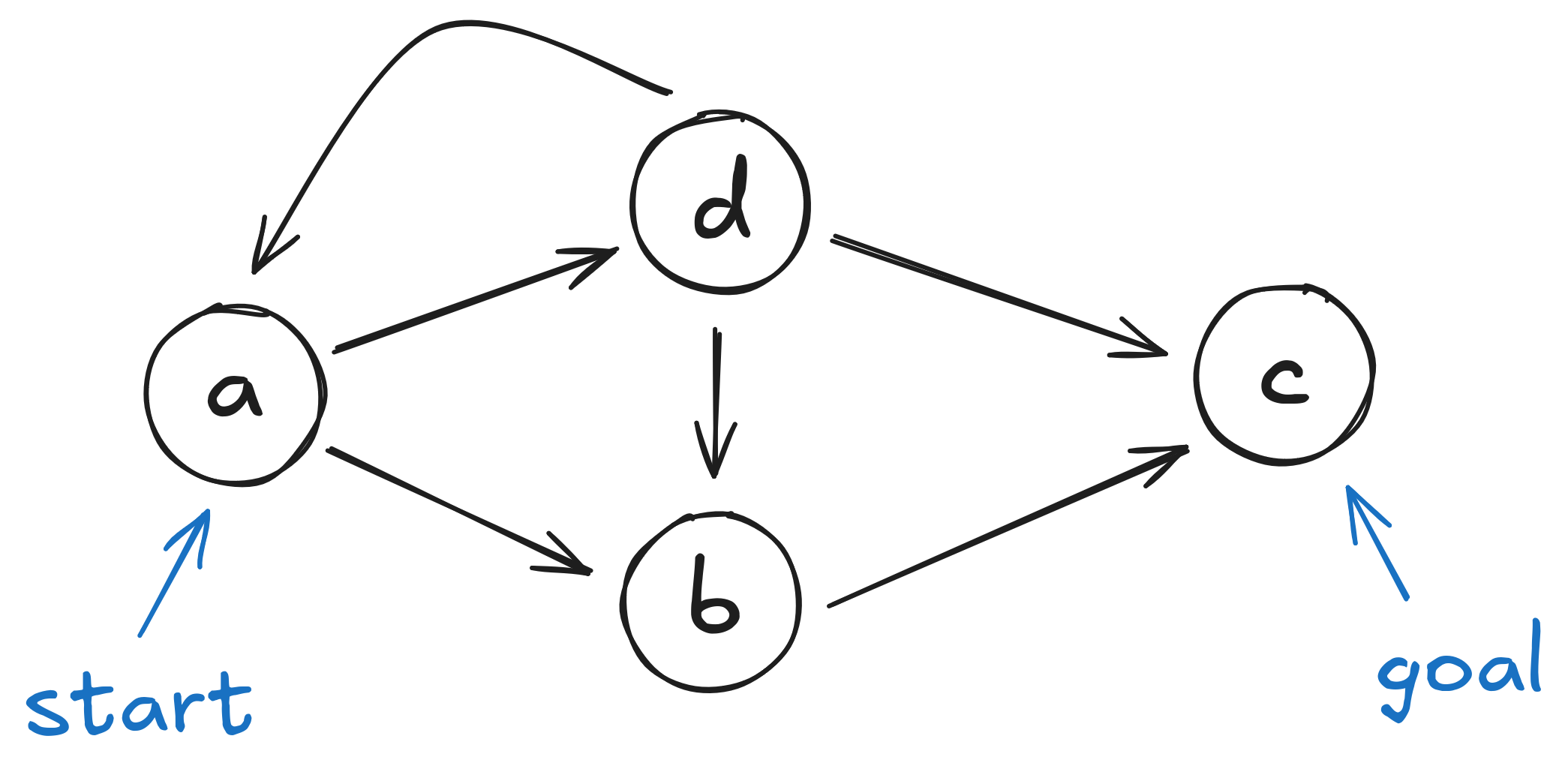

State Space Graph

Search Trees

Graph:

Tree:

Node Representation

Graph:

Tree:

Let’s Talk About Trees

• For any non-trivial problem, they’re big
  • (Effective) branching factor
  • Depth
• Graph and tree both too large for memory
  • Successor function (graph)
  • Expansion function (tree)

How To Solve It

Given:

• Starting node
• Goal test
• Expansion

Do:

• Expand nodes from start
• Test each new node for goal
  • If goal, success
• Expand new nodes
  • If nothing left to expand, failure

Best-First Search

Frontier Expansion

Frontier Expansion

• Frontier: nodes “currently” expanded
  • If no frontier node is goal, need to add to frontier
  • How?
• Can we have cycles?
  • How do we deal with cycles?

Queues & Searches

• Priority Queues
  • Best-First Search
  • Uniform-Cost Search¹
• FIFO Queues
  • Breadth-First Search
• LIFO Queues²
  • Depth-First Search

1. Also known as “Dijkstra’s Algorithm,” because it is Dijkstra’s Algorithm

2. Also known as “stacks,” because they are stacks.

Search Features

• Completeness
  • If there is a solution, will we find it?
• Optimality
  • Will we find the best solution?
• Time complexity
• Memory complexity

Breadth-First Search

• FIFO Queue

• Complete

• Optimal

• \(O(b^d)\)

• Nice features for equal-weight arcs:

  • Lowest-cost path first
  • \(reached\) collection can be a set

Breadth-First Search

Uniform-Cost Search

Non-uniform costs \(\rightarrow\) BFS inappropriate.

Depth-First Search

• “Family” of searches
• LIFO stack
• Problems?

Uninformed Search Variants

• Depth-Limited Search
  • Fail if depth limit reached (why?)
• Iterative deepening
  • vs. Breadth-First Search
• Bidirectional Search

How to Choose?

• Think about when the searches “fail”
• Think about complexity
• Do we need an optimal solution?
  • Are we looking for “any” solution

Informed Search

It Is Possible To Know Things

😌

It Is Possible To Know Things

Heuristics

heuristic - adj - Serving to discover or find out.¹

• We know things about the problem
• These things are external to the graph/tree structure
  • We could model the problem differently
  • We can use the information directly

1. Webster’s, 1913

Best-First Search (reprise)

Greedy Best-First Search

• Heuristic \(h(n)\)
  • \(n\) is the search-tree node
  • \(h(n)\) estimates cost from \(n\) to goal
• Best-first search: \(f(n)\) orders priority queue
  • Use \(f(n) = h(n)\)
• Complete
• No optimality guarantee
  • (expected)

A* Search

• Include path-cost \(g(n)\)
  • \(f(n) = g(n) + h(n)\)

• Complete (always)
• Optimal (sometimes)
• Painful \(O(b^m)\) time and space complexity

Choosing Heuristics

• Recall: \(h(n)\) estimates cost from \(n\) to goal

• Admissibility
• Consistency

Choosing Heuristics

• Admissibility
  • Never overestimates cost from \(n\) to goal
  • Cost-optimal!
• Consistency
  • \(h(n) \leq c(n, a, n') + h(n')\)
  • \(n'\) successors of \(n\)
  • \(c(n, a, n')\) cost from \(n\) to \(n'\) given action \(a\)

Consistency

• Consistent heuristics are admissible

  • Inverse not necessarily true

• Always reach each state on optimal path

• Implications for inconsistent heuristic?

Is Optimality Desirable?

Is Optimality Desirable?

• Yes

Is Optimality Desirable?

• Yes, but it isn’t always feasible
  • A* search still exponentially complex in solution length
  • Optimality is never guaranteed “inexpensively”
• We need strategies for “good enough” solutions

Satisficing

satisfy - verb - To give satisfaction; to afford gratification; to leave nothing to be desired.¹

suffice - verb - To be enough, or sufficient; to meet the need (of anything)²

1. Webster’s, 1913

2. Webster’s, 1913

Weighted A* Search

• Greedy: \(f(n) = h(n)\)
• A*: \(f(n) = h(n) + g(n)\)
• Uniform-Cost Search: \(f(n) = g(n)\)

…

• Weighted A* Search: \(f(n) = W\cdot h(n) + g(n)\)
  • Weight \(W > 1\)

Reducing Complexity

• Frontier Management
• Elimination of \(reached\) collection
  • Reference counts
  • How else?

• Other searches

Iterative-Deepening A* Search

“IDA*” Search

• Similar to Iterative Deepening with Depth-First Search
  • DFS uses depth cutoff
  • IDA* uses \(h(n) + g(n)\) cutoff with DFS
  • Once cutoff breached, new cutoff:
    • Typically next-largest \(h(n) + g(n)\)
  • \(O(b^m)\) time complexity 😔
  • \(O(d)\) space complexity¹ 😌

1. This is slightly complicated based on heuristic branching factor \(b_h\).

Beam Search

Best-First Search:

• Frontier is all expanded nodes

Beam Search:

• \(k\) “best” nodes are kept on frontier
  • Others discarded
• Alt: all nodes within \(\delta\) of best node
• Not Optimal
• Not Complete

Recursive Best-First Search (RBFS)

• No \(reached\) table is kept
• Second-best node \(f(n)\) retained
  • Search from each node cannot exceed this limit
  • If exceeded, recursion “backs up” to previous node
• Memory-efficient
  • Can “cycle” between branches

Recursive Best-First Search (RBFS)

Heuristic Characteristics

• What makes a “good” heuristic?
  • We know about admissability and consistency
  • What about performance?
• Effective branching factor
• Effective depth
• # of nodes expanded

Where Do Heuristics Come From?

• Intuition
  • “Just Be Really Smart”
• Relaxation
  • The problem is constrained
  • Remove the constraint
• Pre-computation
  • Sub problems
• Learning

References

• Stuart J. Russell and Peter Norvig. Artificial Intelligence: A Modern Approach. 4th Edition, 2020.

• Stanford CS231

• UC Berkeley CS188
