Local Search & Games

CSCI 4511/6511

Joe Goldfrank

Announcements

Homework 1 is due on 7 February at 11:55 PM
- Late submission policy
Homework 2 is due on 21 February at 11:55 PM

Why Are We Here?

⠀⠀⠀⠀⠀⠀⠀⢀⣠⣤⣤⣶⣶⣶⣶⣤⣤⣄⡀⠀⠀⠀⠀⠀⠀⠀
⠀⠀⠀⠀⢀⣤⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷⣤⡀⠀⠀⠀⠀
⠀⠀⠀⣴⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⡄⠀⠀⠀
⠀⢀⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⠟⠁⠀⠀⠀
⠀⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⠟⠋⠀⠀⠀⠀⠀⠀
⢠⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⠟⠋            ⠀⣀⣄⡀      ⠀⠀⣠⣄⡀
⢸⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣏⠀⠀⠀            ⢸⣿⣿⣿      ⠀⢸⣿⣿⣿
⠘⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣦⣀⠀            ⠉⠋⠁      ⠀⠀⠙⠋⠁
⠀⢿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷⣦⡀⠀⠀⠀⠀⠀⠀
⠀⠈⢿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷⣤⠀⠀⠀⠀
⠀⠀⠀⠻⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⠃⠀⠀⠀
⠀⠀⠀⠀⠈⠛⢿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⡿⠛⠁⠀⠀⠀⠀
⠀⠀⠀⠀⠀⠀⠀⠈⠙⠛⠛⠿⠿⠿⠿⠛⠛⠋⠁⠀⠀⠀⠀⠀⠀⠀

Search: Why?

Fully-observed problem
Deterministic actions and state
Well-defined start and goal
- “Well-defined”

Goal Tests

Best-First Search

A* Search

Include path-cost \(g(n)\)
- \(f(n) = g(n) + h(n)\)

Complete (always)
Optimal (sometimes)
- Painful \(O(b^m)\) time and space complexity

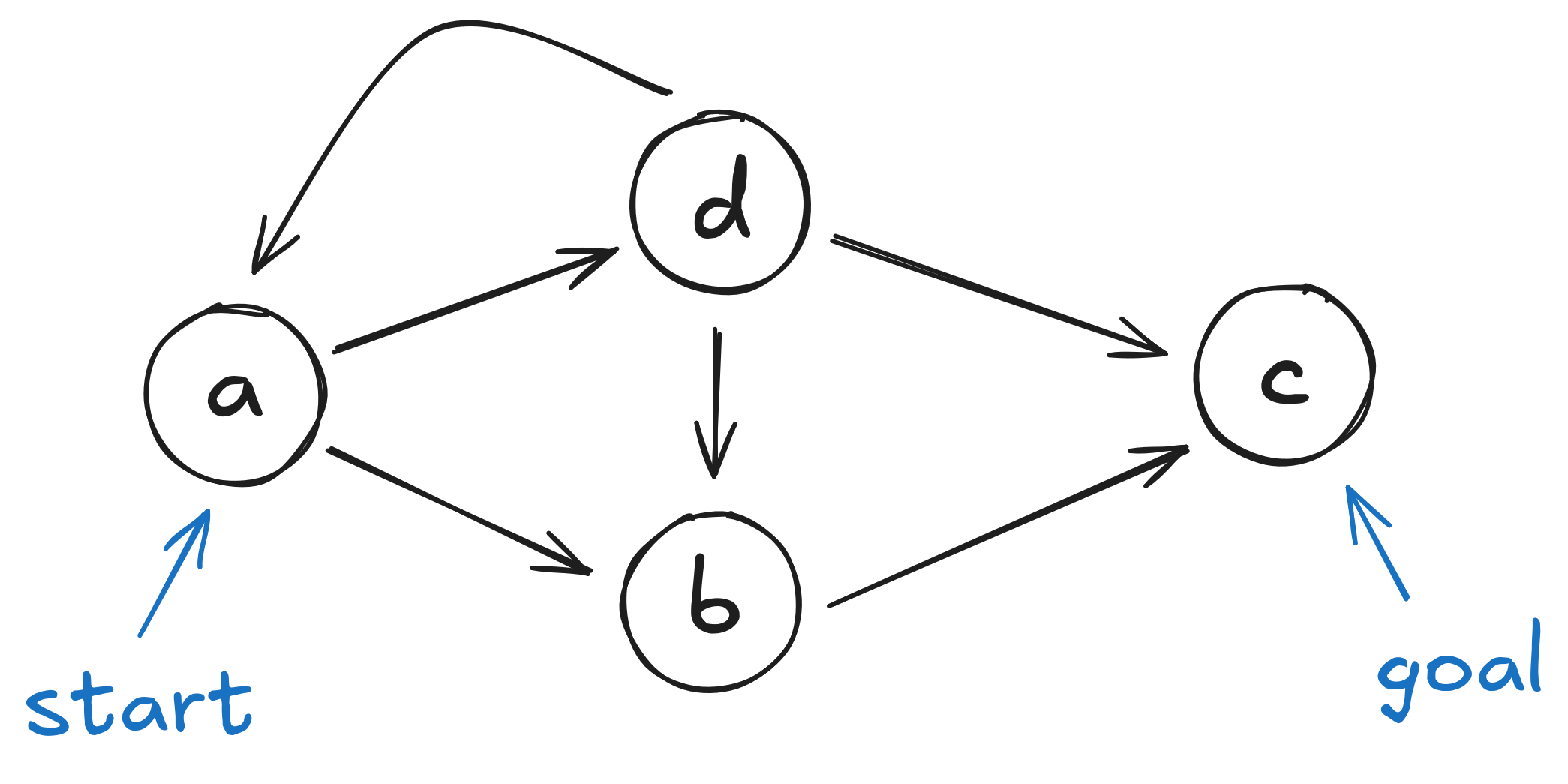

A* vs. Dijkstra

(example)

Advantages?
Disadvantages?

Choosing Heuristics

Recall: \(h(n)\) estimates cost from \(n\) to goal

Admissibility
Consistency

Choosing Heuristics

Admissibility
- Never overestimates cost from \(n\) to goal
- Cost-optimal!
Consistency
- \(h(n) \leq c(n, a, n') + h(n')\)
- \(n'\) successors of \(n\)
- \(c(n, a, n')\) cost from \(n\) to \(n'\) given action \(a\)

Consistency

Consistent heuristics are admissible
- Inverse not necessarily true
Always reach each state on optimal path
Implications for inconsistent heuristic?

Is Optimality Desirable?

Yes, but it isn’t always feasible
- A* search still exponentially complex in solution length
- Optimality is never guaranteed “inexpensively”
We need strategies for “good enough” solutions

Satisficing

satisfy - verb - To give satisfaction; to afford gratification; to leave nothing to be desired.¹

suffice - verb - To be enough, or sufficient; to meet the need (of anything)²

Weighted A* Search

Greedy: \(f(n) = h(n)\)
A*: \(f(n) = h(n) + g(n)\)
Uniform-Cost Search: \(f(n) = g(n)\)

…

Weighted A* Search: \(f(n) = W\cdot h(n) + g(n)\)
- Weight \(W > 1\)

Reducing Complexity

Frontier Management
Elimination of \(reached\) collection
- Reference counts
- How else?

Other searches

Iterative-Deepening A* Search

“IDA*” Search

Similar to Iterative Deepening with Depth-First Search
- DFS uses depth cutoff
- IDA* uses \(h(n) + g(n)\) cutoff with DFS
- Once cutoff breached, new cutoff:
  - Typically next-largest \(h(n) + g(n)\)
- \(O(b^m)\) time complexity 😔
- \(O(d)\) space complexity¹ 😌

Beam Search

Best-First Search:

Frontier is all expanded nodes

Beam Search:

\(k\) “best” nodes are kept on frontier
- Others discarded
Alt: all nodes within \(\delta\) of best node
Not Optimal
Not Complete

Recursive Best-First Search (RBFS)

No \(reached\) table is kept
Second-best node \(f(n)\) retained
- Search from each node cannot exceed this limit
- If exceeded, recursion “backs up” to previous node
Memory-efficient
- Can “cycle” between branches

Recursive Best-First Search (RBFS)

Heuristic Characteristics

What makes a “good” heuristic?
- We know about admissability and consistency
- What about performance?
Effective branching factor
Effective depth
# of nodes expanded

Where Do Heuristics Come From?

Intuition
- “Just Be Really Smart”
Relaxation
- The problem is constrained
- Remove the constraint
Pre-computation
- Sub problems
Learning

Local Search

What Even Is The Goal?

Uninformed/Informed Search:

Known start, known goal
Search for optimal path

Local Search:

“Start” is irrelevant
Goal is not known
- But we know it when we see it
Search for goal

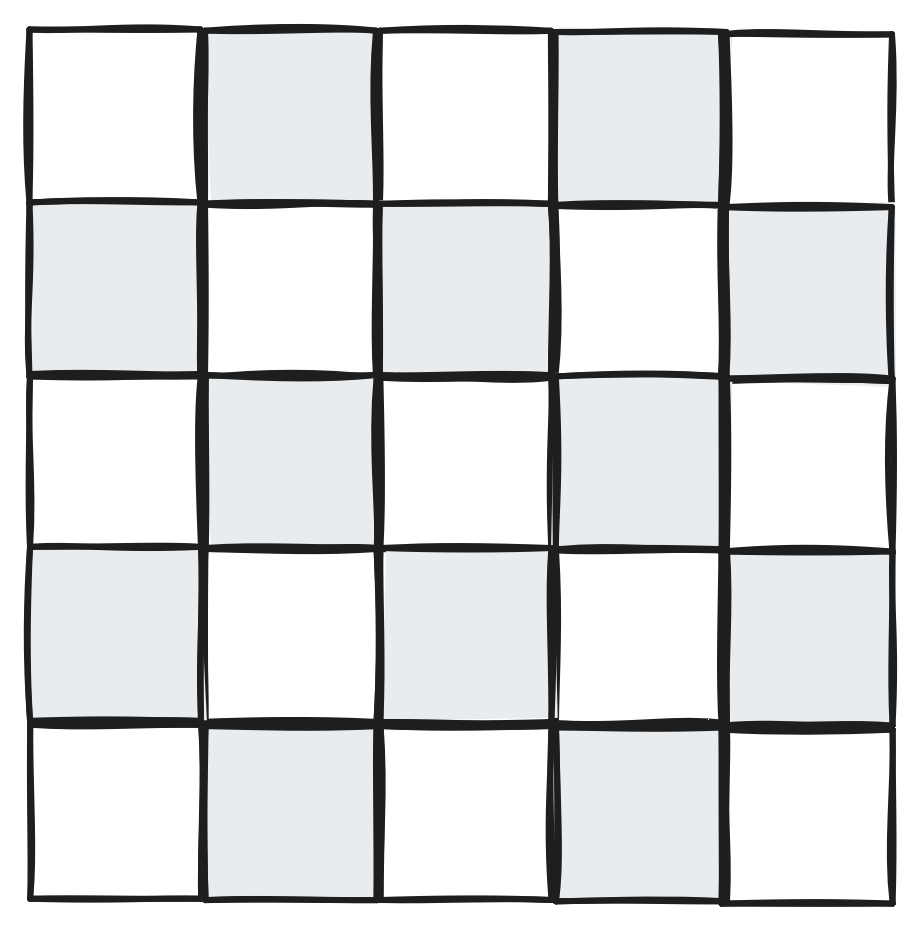

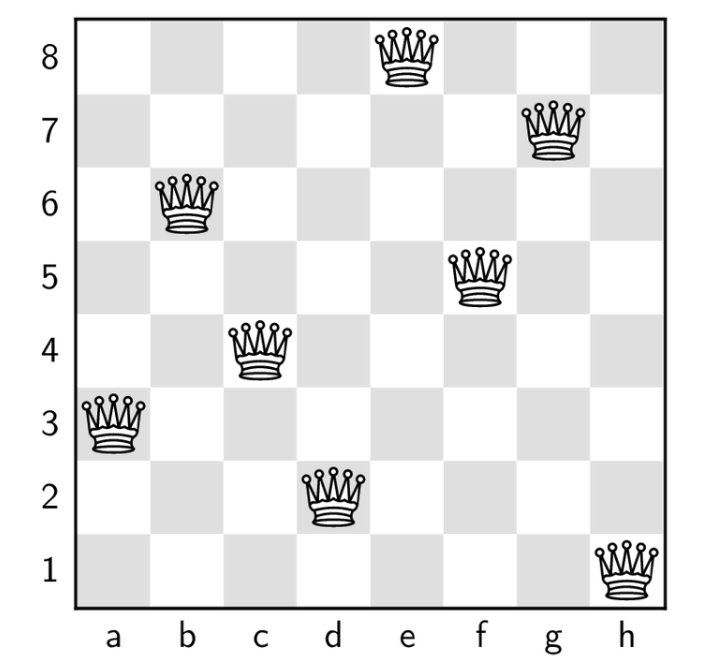

Brutal Example

Less-Brutal Example

“Real-World” Examples

Scheduling
Layout optimization
- Factories
- Circuits
Portfolio management
Others?

Objective Function

Do you know what you want?¹
Can you express it mathematically?²
- A single value
- More is better
Objective function: a function of state

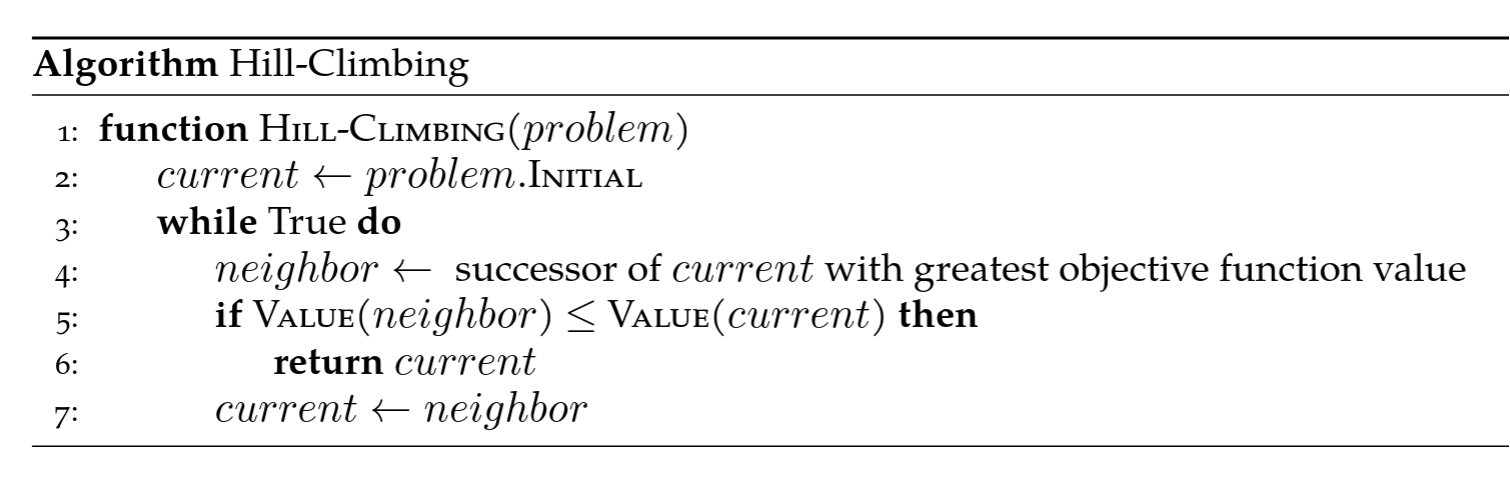

Hill-Climbing

Objective function
State space mapping
- Neighbors

Hill-Climbing

The Hazards of Climbing Hills

Local maxima
Plateaus
Ridges

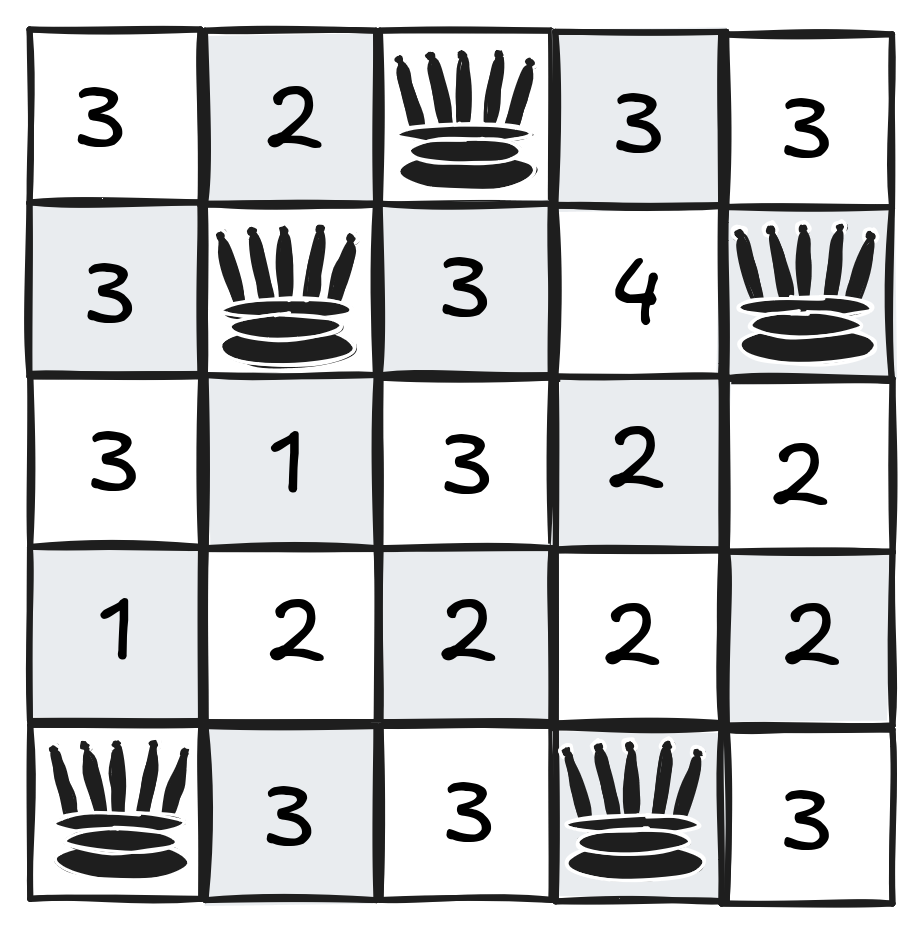

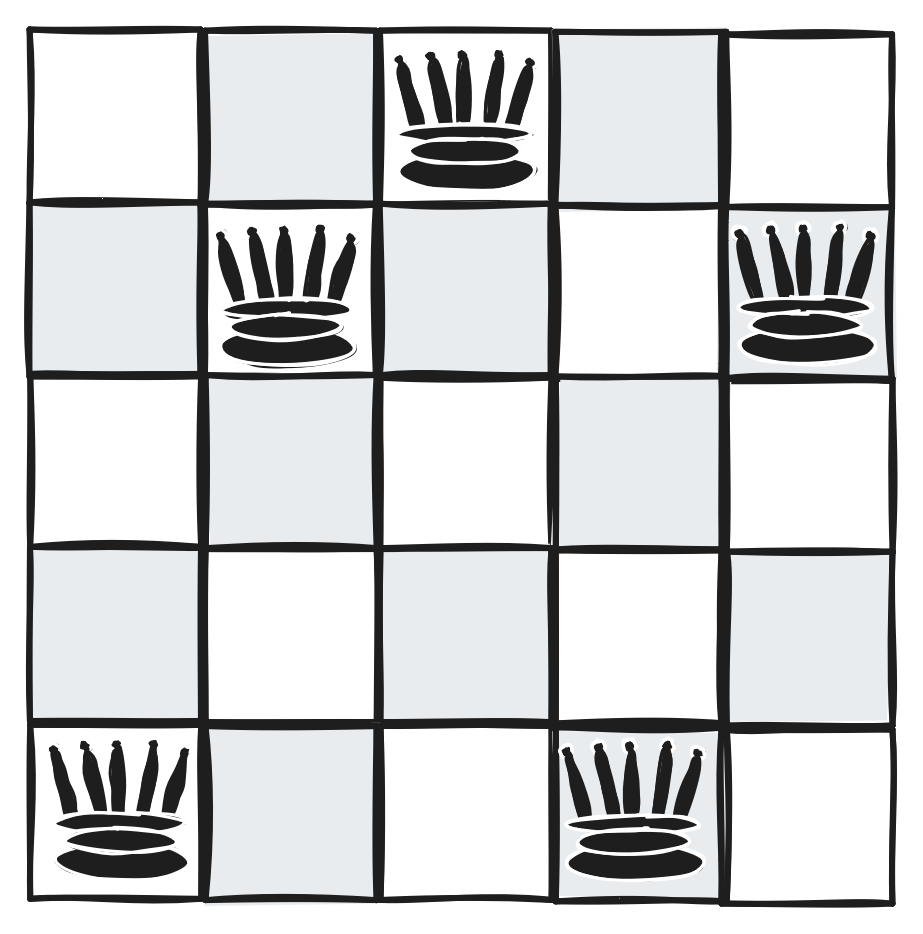

Five Queens

Variations

Sideways moves
- Not free
Stochastic moves
- Full set
- First choice
Random restarts
- If at first you don’t succeed, ~~you fail~~ try again!
- Complete 😌

The Trouble with Local Maxima

We don’t know that they’re local maxima
- Unless we do?
Hill climbing is efficient
- But gets trapped
Exhaustive search is complete
- But it’s exhaustive!
- Stochastic methods are ‘exhaustive’

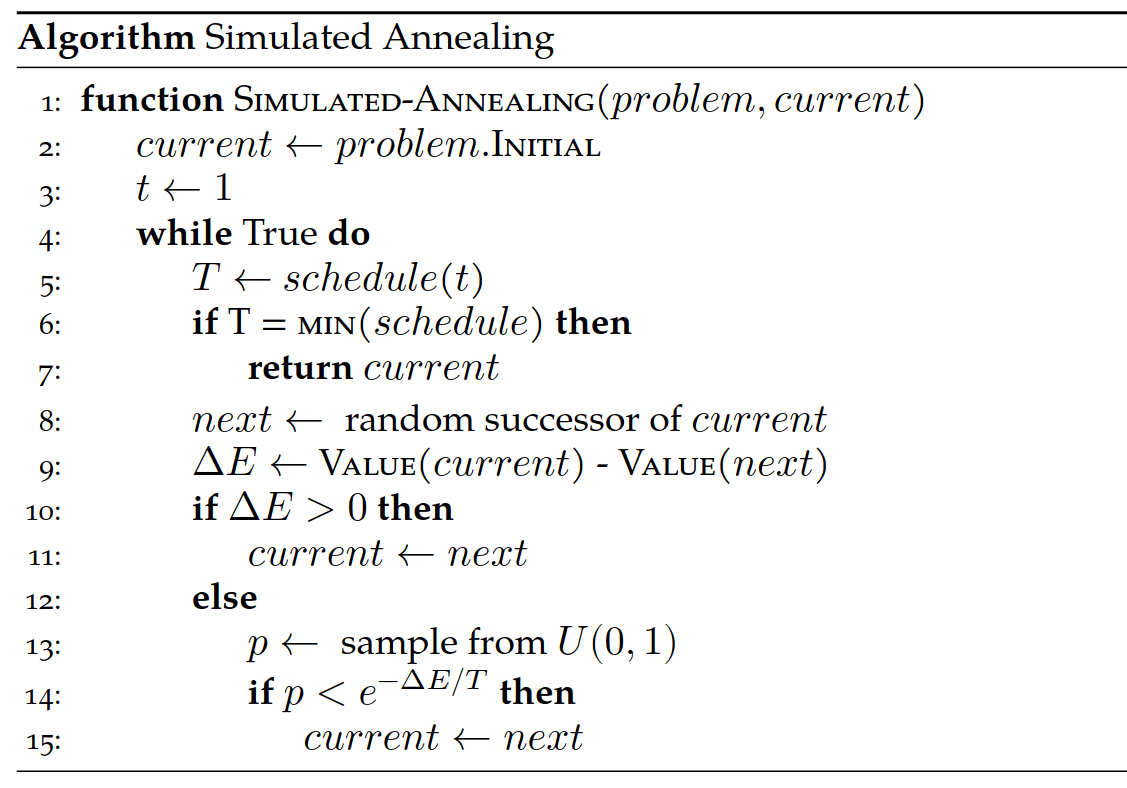

Simulated Annealing

Doesn’t actually have anything to do with metallurgy
Search begins with high “temperature”
- Temperature decreases during search
Next state selected randomly
- Improvements always accepted
- Non-improvements rejected stochastically
- Higher temperature, less rejection
- “Worse” result, more rejection

Simulated Annealing

Local Beam Search

Recall:

Beam search keeps track of \(k\) “best” branches

Local Beam Search:

Hill climbing search, keeping track of \(k\) successors
- Deterministic
- Stochastic

Local Beam Search

The Real World Is Discrete

(it isn’t)

The Real World Is Not Discrete

Discretize continuous space
- Works iff no objective function discontinuities
- What happens if there are discontinuities?
- How do we know that there are discontinuities?

Gradient Descent

Minimize loss instead of climb hill
- Still the same idea

Consider:

One state variable, \(x\)
Objective function \(f(x)\)
- How do we minimize \(f(x)\) ?
- Is there a closed form \(\frac{d}{dx}\) ?

Gradient Descent

Multivariate \(\vec{x} = x_0, x_1, ...\)

Instead of derivative, gradient:

\(\nabla f(\vec{x}) = \left[ \frac{\partial f}{\partial x_0}, \frac{\partial f}{\partial x_1}, ...\right]\)

“Locally” descend gradient:

\(\vec{x} \gets \vec{x} + \alpha \nabla f(\vec{x})\)

Probability

Random Events

Always in the future
We know something about them
- We don’t know the outcome with certainty
Distinctions
Probabilities

Games

First, We Will Play A Game

Pick a partner
Place 11 pieces of candy between you
Alternating turns, either:
- Take one piece
- Take two pieces
Last person to take a piece wins all of the candy

Algorithms for Games

Adversity

So far:

The world does not care about us
This is a simplifying assumption!

Reality:

The world does not care us

…but it wants things for “itself”

…and we don’t want the same things

The Adversary

One extreme:

Single adversary
- Adversary wants the exact opposite from us
- If adversary “wins,” we lose

😐

Other extreme:

An entire world of agents with different values
- They might want some things similar to us
“Economics”

😐

Simple Games

Two-player
Turn-taking
Discrete-state
Fully-observable
Zero-sum
- This does some work for us!

Max and Min

Two players want the opposite of each other
State takes into account both agents
- Actions depend on whose turn it is

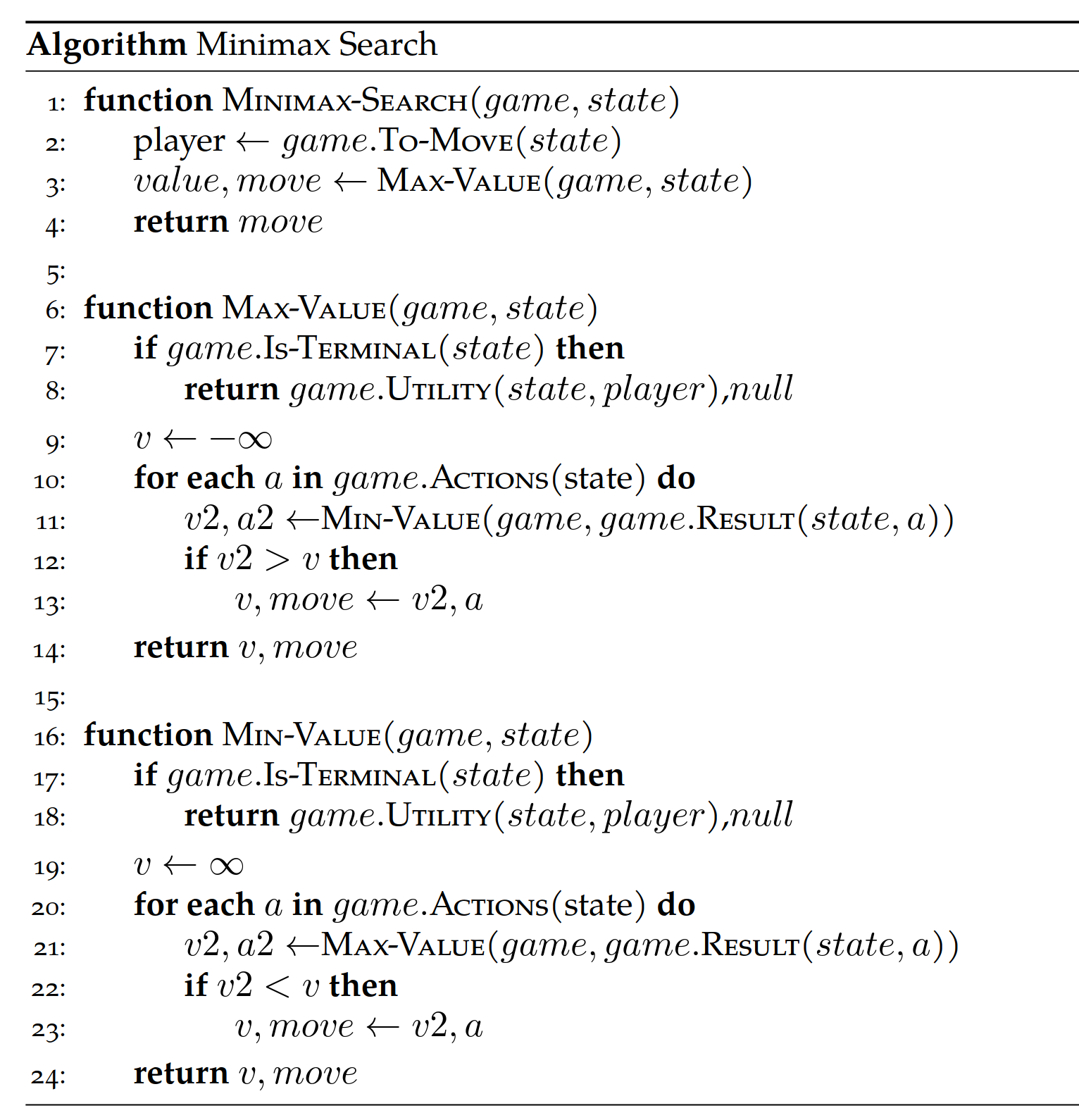

Minimax

Initial state \(s_0\)
Actions(\(s\)) and To-move(\(s\))
Result(\(s, a\))
Is-Terminal(\(s\))
Utility(\(s, p\))

Minimax

More Than Two Players

Two players, two values: \(v_A, v_B\)
- Zero-sum: \(v_A = -v_B\)
- Only one value needs to be explicitly represented
\(> 2\) players:
- \(v_A, v_B, v_C ...\)
- Value scalar becomes \(\vec{v}\)

Society

\(>2\) players, only one can win
Cooperation can be rational!

Example:

A & B: 30% win probability each
C: 40% win probability
A & B cooperate to eliminate C
- \(\rightarrow\) A & B: 50% win probability each

…what about friendship?

Minimax Efficiency

Pruning removes the need to explore the full tree.

Max and Min nodes alternate
Once one value has been found, we can eliminate parts of search
- Lower values, for Max
- Higher values, for Min
Remember highest value (\(\alpha\)) for Max
Remember lowest value (\(\beta\)) for Min

Pruning

Heuristics 😌

In practice, trees are far too deep to completely search
Heuristic: replace utility with evaluation function
- Better than losing, worse than winning
- Represents chance of winning
Chance? 🎲🎲
- Even in deterministic games
- Why?

More Pruning

Don’t bother further searching bad moves
- Examples?
Beam search
- Lee Sedol’s singular win against AlphaGo

Other Techniques

Move ordering
- How do we decide?
Lookup tables
- For subsets of games

Monte Carlo Tree Search

Many games are too large even for an efficient \(\alpha\)-\(\beta\) search 😔
- We can still play them
Simulate plays of entire games from starting state
- Update win probability from each node (for each player) based on result
“Explore/exploit” paradigm for move selection

Choosing Moves

We want our search to pick good moves
We want our search to pick unknown moves
We don’t want our search to pick bad moves
- (Assuming they’re actually bad moves)

Select moves based on a heuristic.

Games of Luck

Real-world problems are rarely deterministic
Non-deterministic state evolution:
- Roll a die to determine next position
- Toss a coin to determine who picks candy first
- Precise trajectory of kicked football¹
- Others?

Solving Non-Deterministic Games

Previously: Max and Min alternate turns

Now:

Max
Chance
Min
Chance

😣

Expectiminimax

“Expected value” of next position

How does this impact branching factor of the search?

🫠

Filled With Uncertainty

What is to be done?

Pruning is still possible
- How?
Heuristic evaluation functions
- Choose carefully!

Non-Optimal Adversaries

Is deterministic “best” behavior optimal?
Are all adversaries rational?

Expectimax
